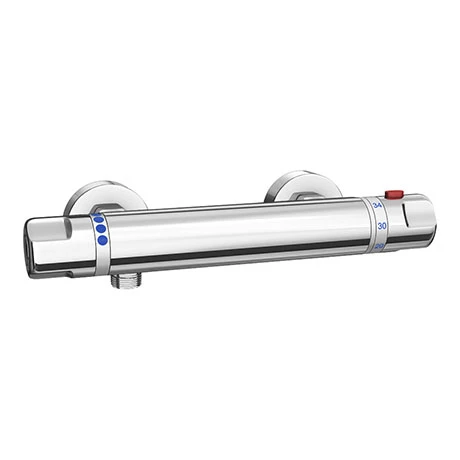

Apollo Low Pressure Thermostatic Bar Mixer Valve

Original price was: £59.95.Current price is: £41.97.

The quality you expect, the service you deserve.

Protecting Your Payment Information

Safe Shopping Guaranteed

Top-Notch Quality

Apollo Low Pressure Thermostatic Bar Mixer Valve

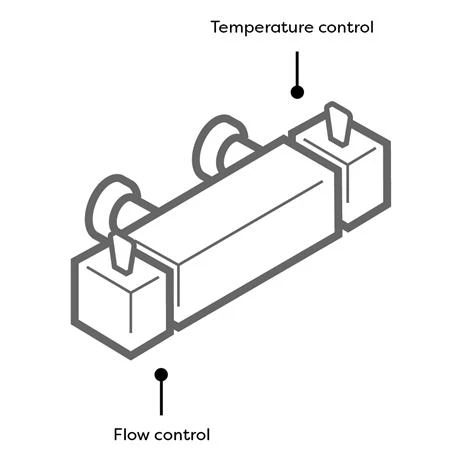

The Apollo low pressure round thermostatic shower bar valve with offset bottom outlet offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection. This low pressure shower mixer is the ideal solution for low pressure gravity fed systems and performs 30% better than standard valves.

Features a pre-set maximum temperature that ensures that showering is safe and convenient. Supplied with decorative shrouds/covers to protect and conceal tile/wall edge, giving the installation a neat finished appearance. Designed to be used with a slider rail kit (not included).

Product Details

Width: 282mm
Height: 40mm
Type: Round Shower Bar Valve
Style: Modern
Fitting: Exposed
Handle Type: Knob
Colour/Finish: Polished Chrome
Material: Solid Brass Internals
1 Bottom Offset Outlet
Wall Mounted
Thermostatic
Separate controls for temperature and flow
Easy installation
Built in anti-scald device
Factory pre-set temperature 38°
Suitable for very low pressure water systems, requiring an operating pressure between 0.5 bar and 1 bar
150mm between pipe inlet centres
Outlet: 15 mm (1/2″ BSP)
Hot water temperature 55 to 85 Degrees
With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images for illustration purposes only

Does not include shower hose.

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.

5 Years
