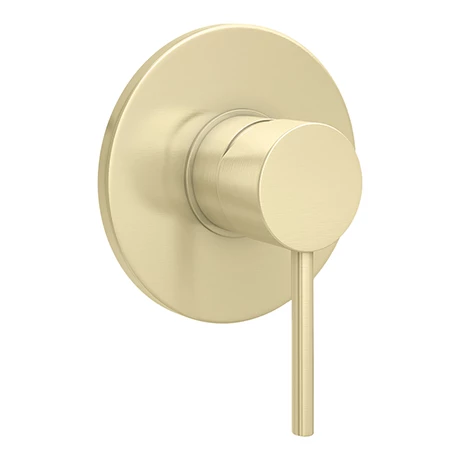

Arezzo Brushed Brass Round Concealed Manual Shower Valve

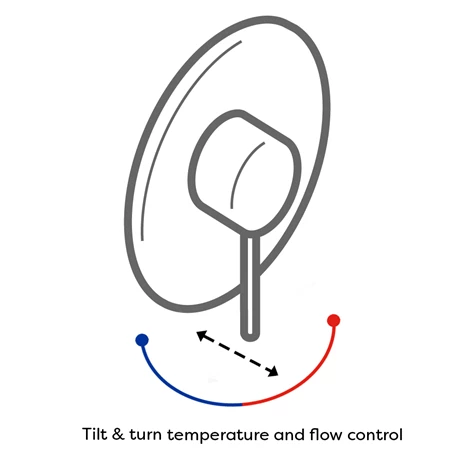

The Arezzo modern brushed brass single lever concealed manual shower valve, characterised by its stylish round handle which controls temperature and flow. Simply lift lever to introduce flow, adjust left or right to set temperature. Operates one shower accessory – slide rail kit or shower head.

Product Details

• Diameter: 110mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Valve Handles: Round
• Brass Internals
• Single Lever
• Concealed
• Round Faceplate
• For use with 1 Outlet
• 1/2″ Inlet Connection

• Non thermostatic mixer valve

• Ceramic disc control for smoother operation
• Suitable for use with all water systems with an operating pressure 0.5 bar up to 5 bar
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates (l/min)
• 0.5 bar – 10.1
• 1 bar – 14.1
• 2 bar – 20.1
• 3 bar – 24.9
• 4 bar – 28.3
• 5 bar – 31.9

Images are for illustrative purposes only

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
