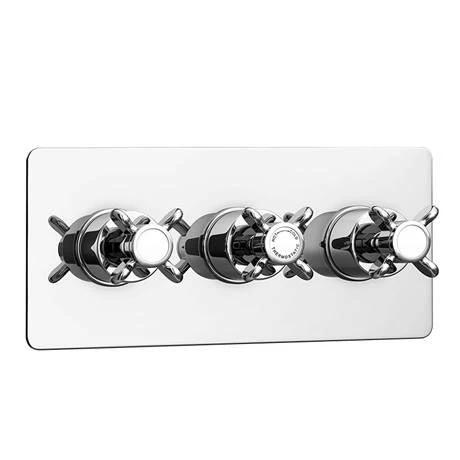

The Astoria triple concealed thermostatic shower valve brings substantial elegance to the modern bathroom. This concealed triple shower valve offers thermostatic showering via three easy-to-operate controls.
Operates two outlets separately or simultaneously e.g. Fixed head / Slide rail kit, Fixed head / Body jets or Slide rail kit / Body jets.
Manufactured using high quality chrome and brass, our range of Edwardian shower valves will look outstanding in any shower enclosure.
Product Details
- Height: 265mm
- Width: 120mm

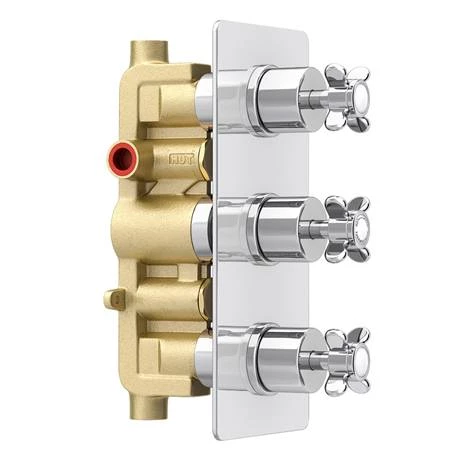

- Type: Concealed Valve
- Style: Traditional
- Colour/Finish: Chrome

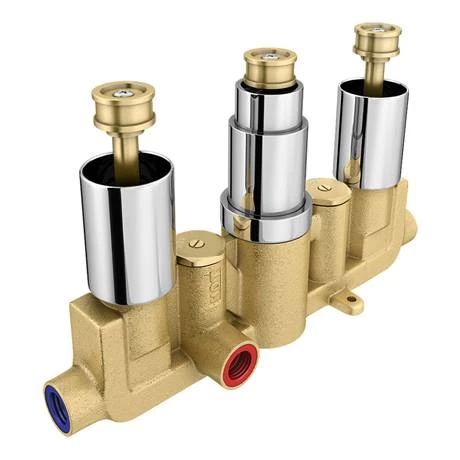

- Manufactured from highly durable brass
- Water Pressure: 0.5 bar to 5 bar
- Wall mounted
- Thermostatically controlled
- Classic cross head handles
- Ceramic Indices

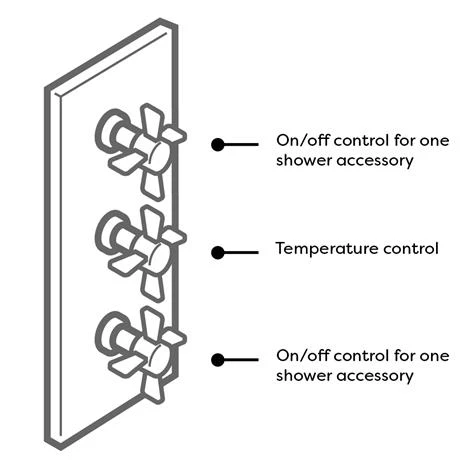

- Separate controls for temperature and flow.
- Can be fitted vertically or horizontally
- Operates two outlets separately or simultaneously – 2 Outlets
- Hot water temperature 55 to 85 Degrees
- With gravity fed systems a pump will be required, we recommend a universal or negative head pump
- Flow Rates:
- 0.5 bar – 9.6 L/M
- 1 bar – 14.1 L/M
- 2 bar – 20.5 L/M
- 3 bar – 24.8 L/M
- 4 bar – 28.3 L/M
- 5 bar – 32 L/M
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
Product images are for illustration purposes only
All measurements are approximate
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.

Download Instructions
