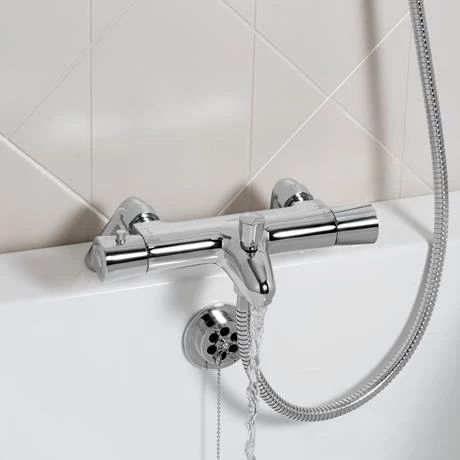

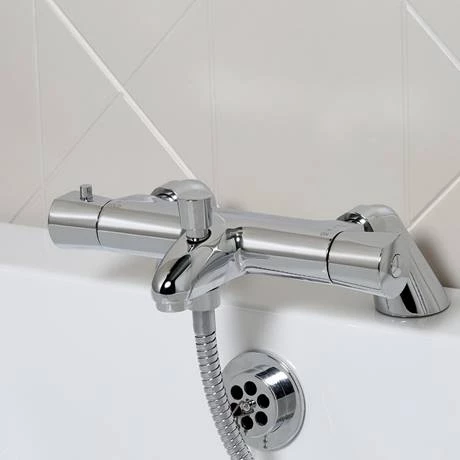

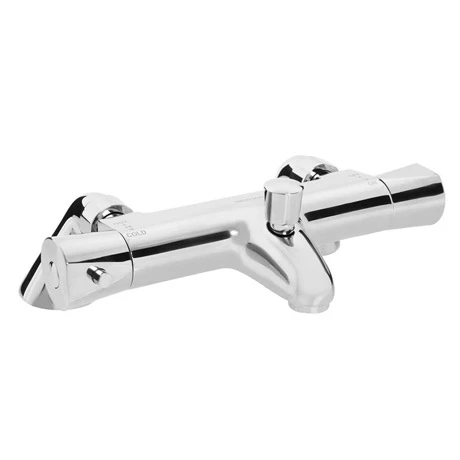

Bristan – Artisan TMV2 Thermostatic Bath Shower Mixer – Chrome

The Bristan Artisan range features dual control and thermostatic cartridge in sleek modern styling. Flow and temperature are controlled separately giving accurate control of both. Comes with TMV2 Approval and 5 year guarantee from Bristan.

Please note shower kit not included.

Product Details

• Thermostatic Bath Shower Mixer
• TMV2 Approved
• Contemporary Style
• Chrome Finish Tap
• Brass constructed tap and designed to comply with BS EN 1111 : 1999 and BS EN 1287 : 1999
• Valve : 1/2 inch standard valve
• Suitable for all plumbing systems preferably balanced
• Thermostatic cartridge
• Inlet Connection : 3/4 inch BSP
• Outlet Connection : G 1/2 inch
• Water pressure : Minimum 0.5 bar – Maximum 5.0 bar, Maximum static pressure – 10.0 bar
• Fitting dimensions : 180mm inlet centres
• Width 280mm x Height 105mm x Depth (Projection) 145mm
• Chrome plated to BS EN 248

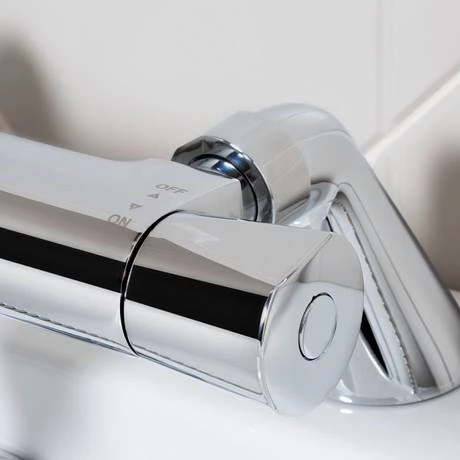

• Dual control – Flow and temperature are controlled separately giving accurate control of both
• Complete thermostatic control to bath and shower functions
• Thermostatic cartridge maintains showering temperature to +/- 1ºC by compensating for changes in the incoming water temperature and pressure giving the stable outlet temperature
• Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of any injury
• Factory set to 38ºC to eliminate the ability to select unsafe temperature; this can be overridden by user

Guarantee: 5 years covering manufacturing faults
