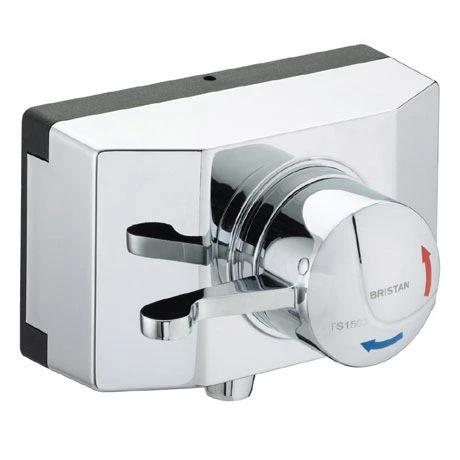

Bristan – Opac Thermostatic Exposed Shower Valve with Chrome Lever and Shroud – OP-TS1503-SCL-C

From the Bristan Commercial range, the Opac Thermostatic Exposed Shower Valve with Chrome Lever and Shroud is a single sequential controlled valve for both temperature and flow. The ABS protective shroud ensures a safe surface temperature. It also features an automatic thermostatic shut-off in the event of hot or cold water failure. TMV3 and WRAS approved.

Product Details

• Product Code: OP TS1503 SCL C
• Finish: Chrome Plated
• Product Type: Commercial
• Construction: Body is of brass construction and is designed to conform to BS EN 1111:1999 (HP) & BS EN 1287:1999 (LP)
• Valve Type: Thermostatic Cartridge
• Supply: Suitable for all plumbing systems (Preferably balanced)
• Inlet Connections: 15mm compression elbows
• Outlet Connections: ½” BSP
• Working Pressures: Min 0.2bar, Max 8.0bar. Maximum Static Pressure: 10.0 bar
• Dimensions for Fitting: 125-132mm inlet centres
• Single sequential control for both temperature & flow.
• ABS protective shroud ensures safe surface temperature.
• Automatic thermostatic shut-off in the event of hot or cold water failure.
• Check valves and serviceable filters as standard
• Adjustable inlet centres of 125-132mm.
• Chrome plated to BS EN 248.

Compliance / Approvals

WRAS: Certificate Nº: 0712092
TMV3: Certificate Nº: BC397/1208

12 Months manufacturer’s guarantee
