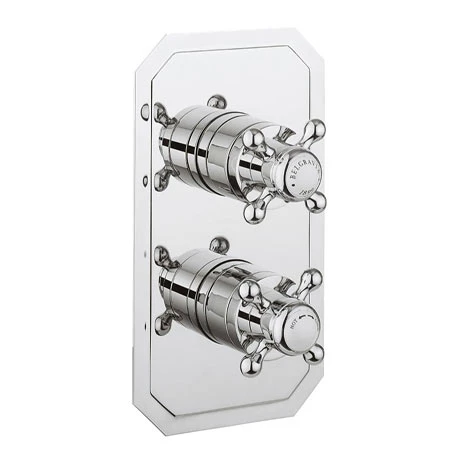

Crosswater Belgravia Crosshead Slimline Thermostatic Shower Valve

Complement your Belgravia bath and basin brassware with matching shower valves. Crosswater has an unrivalled collection of shower valves to provide you with the ultimate in performance. Choose a highly efficient multi outlet experience or an versatile yet simple, single shower outlet. Whichever your preference, all designs are brilliantly engineered to suit British plumbing systems.

This valve is suitable for a single fixed showerhead or shower rail using a wall outlet.

Features

• Brand: Crosswater
• Slimline backplate
• Backplate size: (W)120 x (H)215mm
• Finish: Chrome
• Water pressure: Single outlet works from 0.2 bar upwards
• Temperature and water flow controlled independently
• Suitable for all hot water systems, including gravity fed (0.2 bar minimum) and high pressure (5.0 bar maximum)
• Temperature control mechanism has a temperature limit stop which can be preset at any temperature
• Temperature handle has a built-in safety stop at 42°C with an automatic safety shutdown should the hot or cold water supply fail
• Ceramic disc control for smooth action and no drips
• 100% solid brass construction and trim set
• Fully serviceable from the front
• WRAS and TMV2 Approved

Please note this valve must be installed in portrait as shown.

15 year manufacturers guarantee

Flow Rates

0.2 Bar – 9.3 l/m
0.5 Bar – 14.3 l/m
1.0 Bar – 15.4 l/m
2.0 Bar – 21.5 l/m
3.0 Bar – 26.5 l/m
