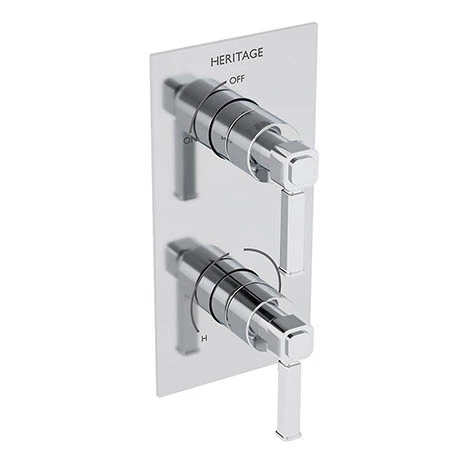

Heritage Somersby Concealed Dual Control Valve – SSOBC01

The luxury Somersby dual control concealed thermostatic shower valve, manufactured from brass with a polished chrome finish, Heritage’s elegant range of shower valves are precision engineered to provide a luxury showering experience. The shower valves are thermostatic so the water stays a consistent temperature even if the water pressure fluctuates. Quality assured by a 5 year guarantee.

Product Details

• Brand: Heritage Bathrooms
• Product Code: SSOBC01
• Finish: Chrome
• Product Type: Traditional
• Construction: Body is of brass construction
• Valve Type: Ceramic Disc Valve
• Supply: Suitable for all plumbing systems, preferably balanced. The inlet hot water must be at least 10% above the required blend temperature
• Inlet Connections: 15mm Compression Connections
• Working Pressures: Min 0.2bar, Max 5.0bar
• Chrome plated to BS EN 248
• Suitable for cavities between 45-75mm
• Minimum cold water supply temperature is 5ºC
• Maximum hot water supply temperature is 80ºC
• Flow rate at 0.2bar (open outlet without flow regulators) is 9LPM
• Cartridge serviceable from the front

5 Year Guarantee

Flow Rates

0.2 Bar – (Through Handset) 6.3 l/m
0.5 Bar – (Through Handset) 11.7 l/m
1.0 Bar – (Through Handset) 17.3 l/m
2.0 Bar – (Through Handset) 25.3 l/m
3.0 Bar – (Through Handset) 30.1 l/m
5.0 Bar – (Through Handset) 38.8 l/m
