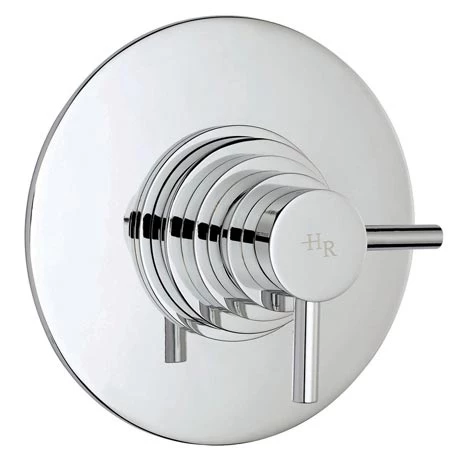

Hudson Reed Tec Dual Concealed Thermostatic Shower Valve – A3192C

The Tec dual is a simple and stylish shower option. Ideal for use with our luxury fixed shower head, slide rail kit or shower kit.

Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Additionally this valve has a safety button stop at 38 degrees centigrade for safe showering which requires a conscious decision to override to higher temperatures.

Easy to operate – the front control adjusts the temperature and back control turns the water on and off. The dual concealed shower operates one shower accessory – fixed head or slide rail kit.

Product Details

• Diameter – 190mm
• Depth – 102mm
• Type – Dual Concealed Shower Valve
• Material – Solid Brass
• Colour/Finish – Polished Chrome
• Suitable for all water systems
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 &°C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.

Made in Britain and TMV2 approved – ensuring it has been tested to the highest standards.

WRAS approved Product

Guarantee – 20 Year

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 14.5 l/m
1.0 Bar – 22 l/m
2.0 Bar – 30 l/m
3.0 Bar – 35 l/m
