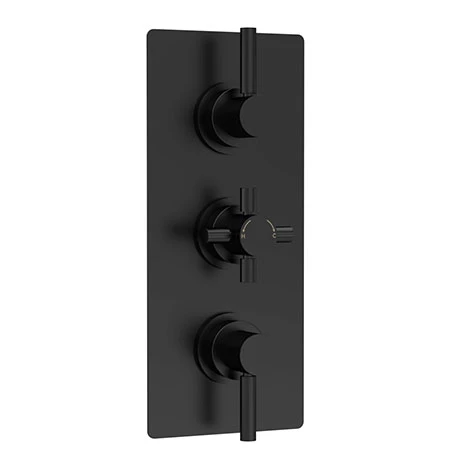

Hudson Reed Tec Pura Plus Concealed Thermostatic Triple Shower Valve with Diverter – Matt Black – A4023

The Tec Pura Plus tripe shower valve incorporates thermostatic control with the most up to date design. A thermostatically controlled shower with separate controls for the flow & temperature. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail.

Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to free flow bath filler.

Product Details

• Height – 280mm
• Width – 80mm
• Depth – 137mm
• Colour/Finish – Matt Black
• Material – High quality brass & ABS
• Water Pressure – MP – 0.5 bar pressure minimum
• Can be fitted vertically or horizontally.
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure the valve will shut down as per the relevant standard.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing.
• Simply remove the cartridge turn 180 degrees and replace.
• Suitable for all plumbing systems

Made in Britain

Guarantee – 3 Year

Flow Rates

0.1 Bar – N/A
0.5 Bar – 13 l/m
1.0 Bar – 17 l/m
2.0 Bar – 24 l/m
3.0 Bar – 27 l/m
