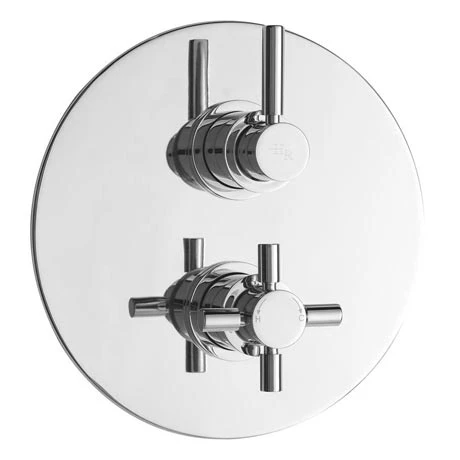

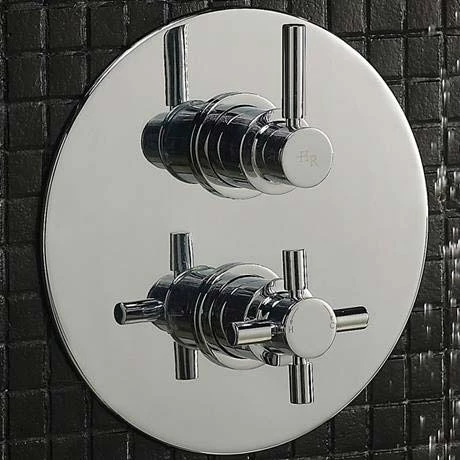

Hudson Reed Tec Twin Concealed Thermostatic Shower Valve – A3098

The Tec Twin shower valve incorporates thermostatic control with the most up-to-date design.

Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Separate controls for temperature and flow.

Operates one shower accessory: fixed head or slide rail kit (sold separately).

Product Details

• Depth  – 136mm
• Diameter – 210mm
• Colour/Finish – Polished Chrome
• Material – solid brass
• Water Pressure – LP1 – 0.1 bar pressure minimum
• Can be fitted vertically or horizontally.
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 &°C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.

Made in Britain and TMV2/TMV3 approved – ensuring it has been tested to the highest standards.

Guarantee – 20 Year

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 14 l/m
1.0 Bar – 20 l/m
2.0 Bar – 29 l/m
3.0 Bar – 44 l/m
