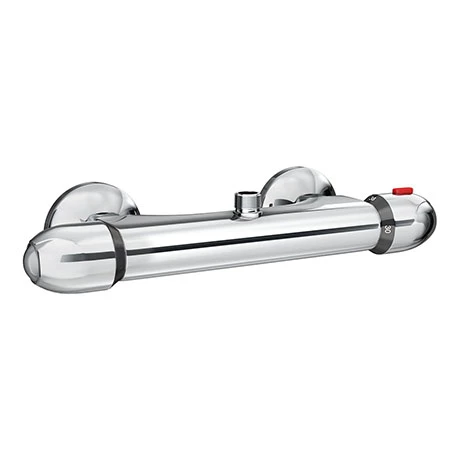

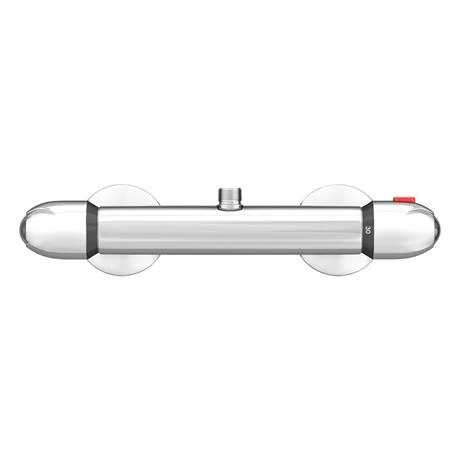

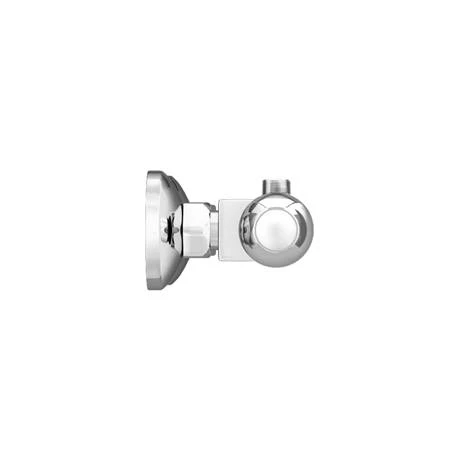

Juno Round Top Outlet Thermostatic Bar Shower Valve

The modern Juno round top outlet thermostatic shower bar valve offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection. Features a pre-set maximum temperature and comes with decorative shrouds/covers to protect and conceal tile/wall edge, giving the installation a neat finished appearance. Designed to be used with a rigid riser kit (not included).

Product Details

• Width: 284mm
• Height: 40mm
• Projection: 62mm
• Type: Round Shower Bar Valve
• Style: Modern
• Fitting: Exposed
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• 1 Top Outlet
• Wall Mounted
• Thermostatic

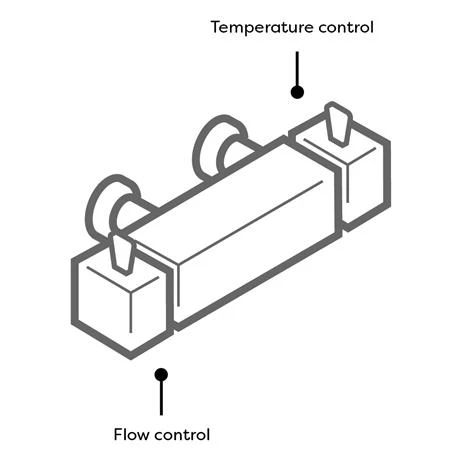

• Separate controls for temperature + flow
• Easy installation
• Built in anti-scald device
• Factory pre-set temperature 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images for illustration purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
