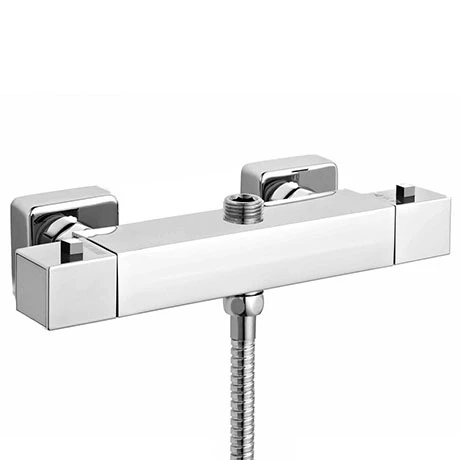

If you’re looking for luxe and contemporary shower fittings, consider the Milan Square Thermostatic Bar Shower Valve. This valve has two outlets, so can be combined with a showerhead and handset. There are dual controls for temperature and flow and the unit is thermostatic so it won’t freeze you even if someone’s running a tap elsewhere. For added comfort and safety, the anti scald feature will keep the spray at a maximum of 38°C unless adjusted with the push button. Decorative covers on the pipework will conceal tile edges for a neat appearance.
Product Details
- Width: 262mm
- Depth: 71mm
- Height: 35mm
- Style: Modern
- Range: Bar Showers
- Handles: Square
- Colour/Finish: Polished Chrome
- Material: Solid Brass Internals
- 2 Outlet (Top / Bottom)
- Thermostatically controlled
- Built-in anti-scald device

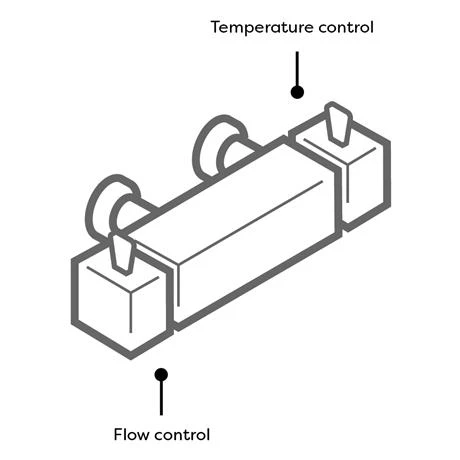

- Separate controls for temperature and flow
- Incorporating diverter to control flow between overhead to hand shower
- Easy installation
- Built in anti-scald device
- Factory pre-set temperature 38°
- Recommended Water Pressure: 0.5 bar to 5 bar
- 150mm between pipe inlet centres
- Outlets: 15 mm (1/2″ BSP)
- With gravity fed systems a pump will be required, we recommend a universal or negative head pump
- Flow Rates:
- 0.5 bar – 6 L/M
- 1 bar – 9 L/M
- 2 bar – 12.9 L/M
- 3 bar – 16 L/M
- 4 bar – 18.4 L/M
- 5 bar – 20.6 L/M
All measurements are approximate
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
Product images for illustration purposes only
Does not include shower hose.
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
