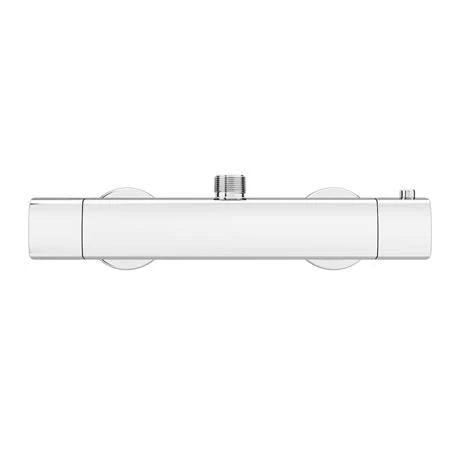

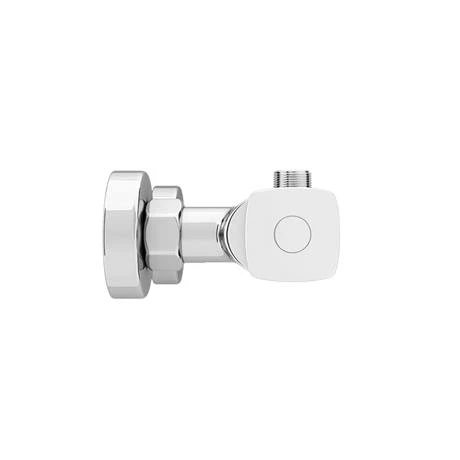

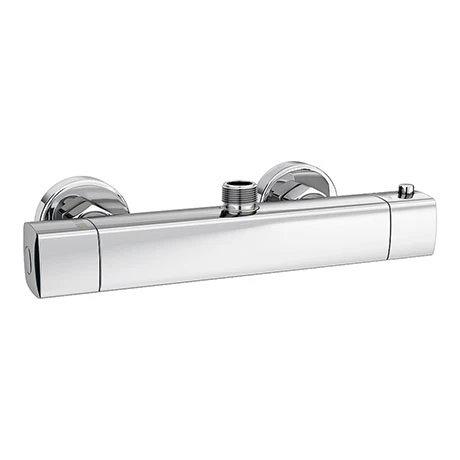

Montreal Modern Thermostatic Bar Shower Valve (Top Outlet)

This stunning Montreal bar shower valve is part of our range of contemporary collection of showers and valves. This modern bar valve features modern soft curved styling with a chrome finish and has been constructed from solid brass. Pair the with a modern riser kit for a clean, and modern shower look.

Product Details

• Width: 255mm
• Depth: 84mm
• Height: 40mm
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Type: Bar Shower Valve
• Modern Design
• Surface / Wall Mounted
• Top Outlet

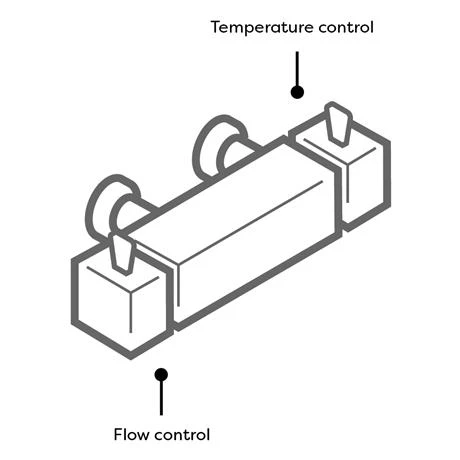

• Thermostatic shower control valve for comfort and safety
• Durable and dependable
• 150mm between pipe inlet centres
• Water Pressure: 0.5 bar to 5 bar
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images for illustration purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
