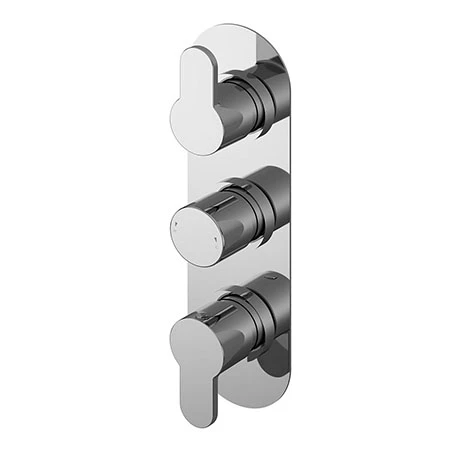

Nuie Arvan Triple Concealed Thermostatic Shower Valve with Diverter – ARVTR03

For a sleek and contemporary look, the Arvan Triple Concealed Thermostatic Shower Valve with Diverter is a great option. It features a rounded faceplate and matching round controls and comes beautifully finished in chrome.

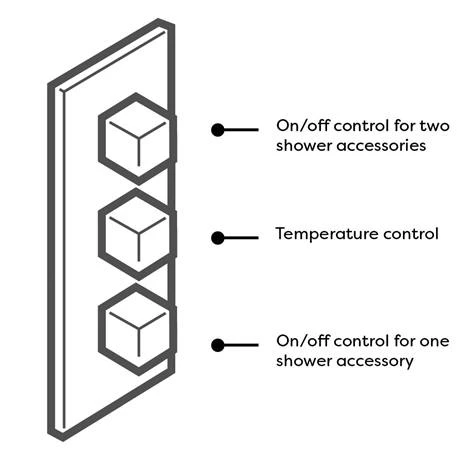

This concealed shower valve operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to free flow bath filler.

Product Details

• Brand: Nuie
• Product Code: ARVTR03
• Height: 280mm
• Width: 95mm
• Depth: 136mm
• Finish: Chrome
• Thermostatically controlled
• Material: Brass / ABS
• Concealed shower
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 22 mm (3/4″ BSP)
• Operating Pressure: 0.5 bar
• For use with 2 Outlets (separately or simultaneously) and diverts to a third option
• Built-In Diverter

All measurements are approximate

Flow Rates

0.5 Bar – 13 l/m
1 Bar – 17 l/m
2 Bar – 24 l/m
3 Bar – 27 l/m
