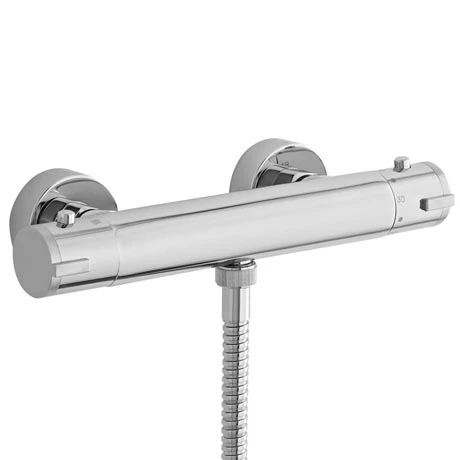

Nuie TMV2 Minimalist Thermostatic Bar Shower Valve – Bottom Outlet – VBS009

This Shower bar valve is designed and manufactured by leading bathroom brand Nuie. This valve has a minimalist design and is fully thermostatic, meaning temperature can be controlled from the bar valve itself. The valve has its outlet positioned on the bottom for attaching a shower flex.

Product Details

• Height – 39mm
• Width – 268mm
• Depth – 71mm
• Pressure – LP2 – 0.2 Bar Minimum
• Colour/Finish – Polished Chrome
• Material – Manufactured from high quality brass & ABS
• Bottom Outlet
• Thermostatically controlled.
• Built-in anti-scald device.
• Suitable for shower pumps.
• Pipe Centres: 150mm

• Outlet: 15 mm (1/2″ BSP)


WRAS & TMV2 approved – ensuring it has been tested to the highest standards.

Guarantee – 5 Year

Flow Rates

0.1 Bar – 4 l/m
0.5 Bar – 10 l/m
1.0 Bar – 17 l/m
2.0 Bar – 21 l/m
3.0 Bar – 26 l/m
