Round Minimalist Top Outlet Bar Shower Valve

The minimalist exposed round thermostatic bar valve with top outlet is part of our contemporary collection of bathroom products. Modern styling with chrome finish and constructed from solid brass, the minimalist bar valve has two controls, one controls the flow and the other controls the temperature. Designed to be used with a rigid riser kit (not included).

Product Details

• Width: 262mm
• Depth: 74mm
• Height: 40mm
• Style: Modern
• Range: Bar Showers
• Handles: Round Mini Lever
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Top Outlet

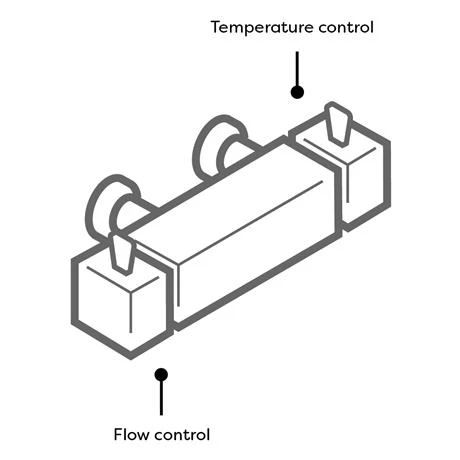

• Separate controls for temperature and flow
• Easy installation
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
