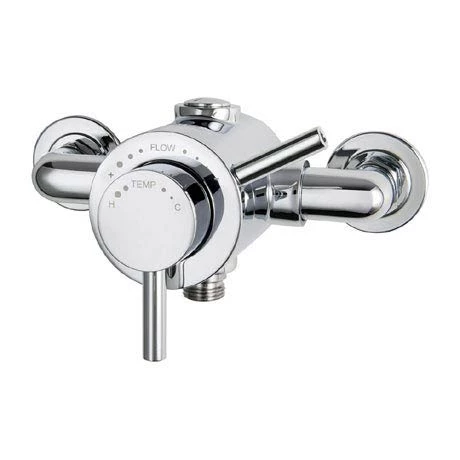

Triton Elina Exposed TMV3 Concentric Shower Valve – ELICMINCEXVO

The Elina Exposed Concentric Shower Valve is stylish, functional and built to high standards. It is TMV3 and WRAS approved and is designed for use in commercial installations such as care homes, hospitals and nursing homes. The Elina has many features and benefits such as automatic shutdown if hot and cold supplies fail, it is simple to install and maintain and has accessible front facing lever controls that are easy to turn.

Features

• Temperature Control: Thermostatic
• Inlet Connection: 15mm compression to flat face union
• Water Entry Points: Rising, falling, back
• Outlet Connection: 1/2” BSP top or bottom
• Minimum Running Pressure/Flow: 0.1 Bar @ 8 l/min
• Maximum Running Pressure: 5 Bar
• Open Outlet Flow at 0.1 Bar: 7 l/min
• Flow Limiters Supplied: 12 l/min max flow
• Approvals: Complies with: BS EN 1111, 1287 : WRAS, TMV3
• Made in Britain

5 Year Guarantee

Guarantee applies only to products installed within the UK and does not apply to products used commercially or outside the UK.
